Integrating BigQuery + dbt with Dagster Cloud Insights (Experimental)#

BigQuery costs can be integrated into the Dagster Insights UI. The dagster-cloud package contains utilities for capturing and submitting BigQuery cost metrics about data operations to Dagster Cloud.

If you use dbt to materialize tables in BigQuery, use this guide to integrate BigQuery cost metrics into the Insights UI. For instructions on integrating direct BigQuery queries, see Integrating Direct BigQuery Usage with Dagster Cloud Insights.

Prerequisites#

To complete the steps in this guide, you'll need:

• A Dagster Cloud account on the Pro plan

• Access to the Dagster Cloud Insights feature

• BigQuery credentials which have access to the INFORMATION_SCHEMA.JOBS table (e.g. BigQuery Resource viewer role). These credentials should be provided used by your dbt profile. For more information on granting access to this table, see the BigQuery documentation.

• To install the following libraries:

  pip install dagster dagster-cloud dagster-dbt dagster-gcp


  Note: If you already have dagster-cloud installed, make sure you're using version 1.7.0 or newer.

Step 1: Instrument your Dagster code#

from dagster_cloud.dagster_insights import dbt_with_bigquery_insights


@dbt_assets(...)
def my_asset(context: AssetExecutionContext, dbt: DbtCliResource):
    # Typically you have a `yield from dbt_resource.cli(...)`.
    # Wrap the original call with `dbt_with_bigquery_insights` as below.
    dbt_cli_invocation = dbt_resource.cli(["build"], context=context)
    yield from dbt_with_bigquery_insights(context, dbt_cli_invocation)

from dagster_cloud.dagster_insights import dbt_with_bigquery_insights


@op(out={})
def my_dbt_op(context: OpExecutionContext, dbt: DbtCliResource):
    # Typically you have a `yield from dbt_resource.cli(...)`.
    # Wrap the original call with `dbt_with_bigquery_insights` as below.
    dbt_cli_invocation = dbt.cli(
        ["build"], context=context, manifest=dbt_manifest_path
    )
    yield from dbt_with_bigquery_insights(context, dbt_cli_invocation)

@job
def my_dbt_job():
  ...
  my_dbt_op()
  ...

Step 2: Update dbt_project.yml#

Next, add the following to your dbt project's dbt_project.yml:

query-comment:
  comment: "bigquery_dagster_dbt_v1_opaque_id[[[{{ node.unique_id }}:{{ invocation_id }}]]]"
  append: true

This allows you to add a comment, containing the dbt invocation ID and unique ID, to every query recorded in BigQuery's INFORMATION_SCHEMA.JOBS table. Using this data, Insights will attribute cost metrics in BigQuery to the corresponding Dagster jobs and assets.

Step 3: View BigQuery usage in the Dagster UI#

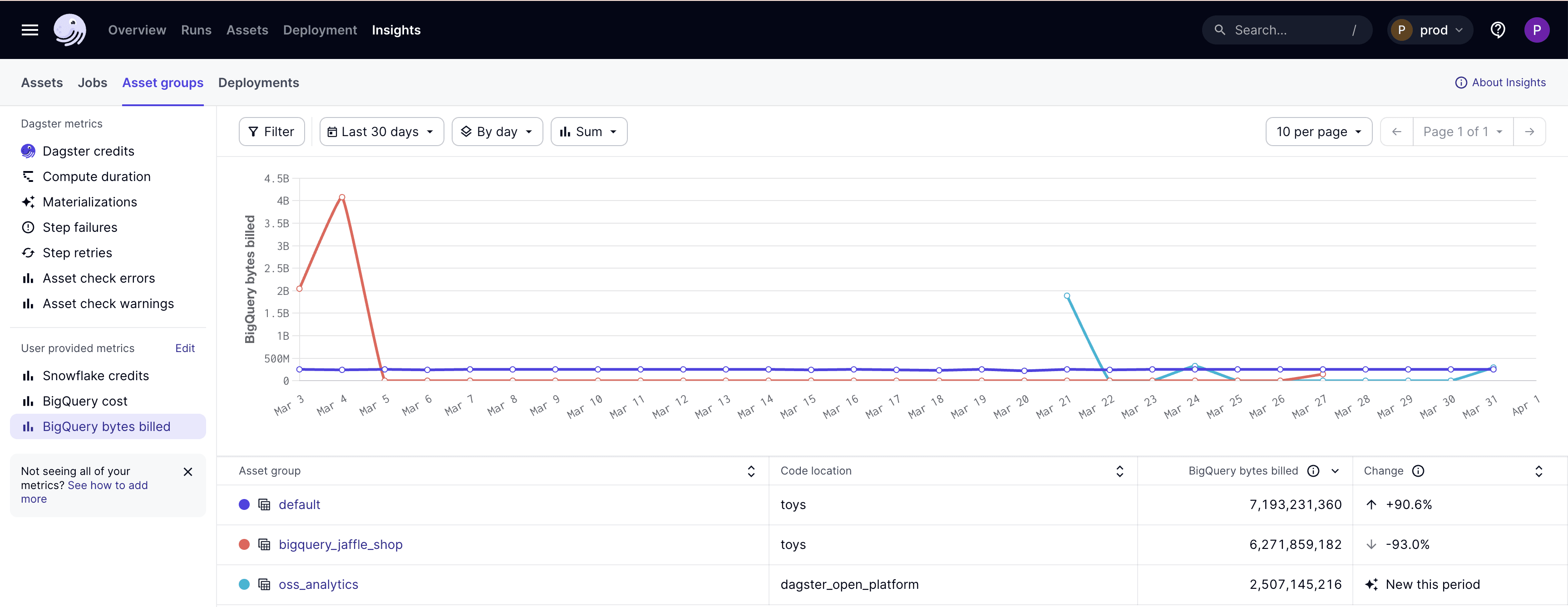

Typically within 24 hours, the BigQuery metrics should be available in the Insights tab in the Dagster UI:
